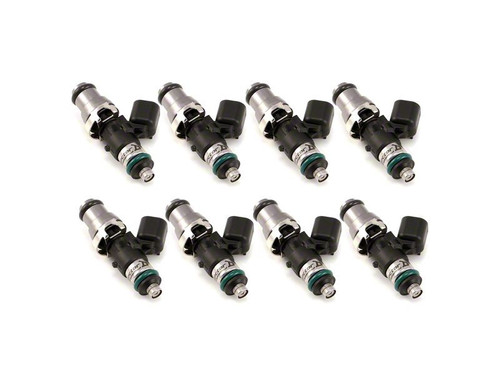

Injector Dynamics ID2600-XDS Fuel Injectors for Whipple Supercharged Coyote 2011+
The Injector Dynamics ID2600-XDS is the largest injector in the XDS range, a nominal 2600cc/min high-impedance unit on Bosch EV14 architecture. It is built for high-boost and heavy E85 or methanol combinations making serious power, and unlike most injectors this size it retains usable low-pulse-width control, so the car still drives and idles properly. Every set is characterized on NIST-traceable equipment to SAE J1832 so your tuner is working from real flow data.
Verified Fitment — Injector Dynamics part 2600.60.14.14W.8
Per the Injector Dynamics ID2600-XDS application chart, this set of 8 is the correct kit for:
- 2011 and newer Ford 5.0L Coyote with Whipple supercharger
Specifications
- Nominal flow 2600cc/min at 3 bar (about 2065cc/min at the OE 58 psi base pressure)
- High impedance — no resistor or driver box required
- Full stainless internals, compatible with E85, methanol and pump gas
- Pressure capability 1 bar to 10 bar, 6V to 24V, 0C to 80C
- Sold as a matched set of 8
Important Notes
- ECU tuning is required after installation — we can handle the tune remotely
- Not CARB certified — for motorsport and off-road use only
- 1-year limited manufacturer warranty
If your combination does not need this much injector, the ID1050X, ID1300-XDS and ID1750-XDS cover most street and strip builds. Message us with your setup if you are not sure which set to order.
