AEM Electronics X-Series Gauges at N2 Speed
AEM Electronics X-Series digital gauges are the standard tools for watching what a tuned engine is actually doing. N2 Speed stocks the X-Series wideband air/fuel ratio gauges, boost pressure gauge and oil/fuel pressure gauge — 52 mm housings with a fast digital display, a 24-bit sensor controller and both analog and serial outputs so the gauge can feed a datalogger or standalone ECU. If you are running a custom tune on boost or E85, a wideband is not optional equipment.
AEM Products We Stock
| Product | Part # | Price | Fitment / notes |
|---|---|---|---|

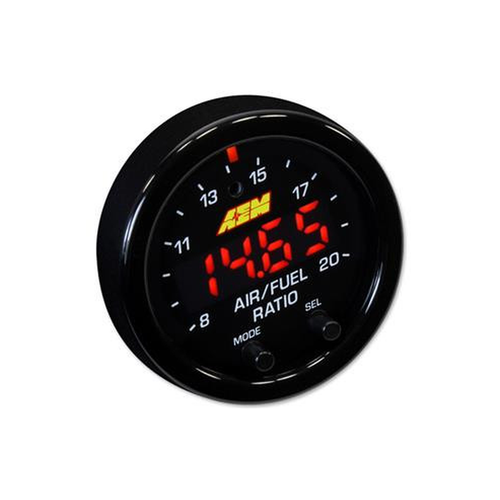

| AEM X-Series Wideband AFR OBDII Gauge | 30-0334 | $314.95 | Reads AFR and OBD-II data on one gauge |
| AEM X-Series Wideband UEGO AFR Sensor Controller Gauge | 30-0300 | $259.95 | Bosch 4.9 LSU sensor, 0.1 AFR resolution |
| AEM X-Series Boost Pressure Gauge | 30-0306 | $259.95 | -30 inHg to 35 PSI / -1 to 2.5 BAR |
| AEM X-Series Oil / Fuel Pressure Gauge | 30-0307 | $311.95 | 0-150 PSI / 10 BAR with sensor and fittings |
Why a wideband matters on a tuned car
A factory narrowband sensor only tells the ECU whether the mixture is near stoichiometric. It cannot show what the engine is doing at wide open throttle, which is exactly where a lean condition destroys pistons. The X-Series wideband displays true AFR or lambda in real time and outputs it to a logger, so your tuner is calibrating from measured data instead of assumption.
Pairing gauges with N2 Speed tuning
We use wideband, boost and fuel pressure data on every forced-induction and E85 calibration. If you are datalogging for a remote tune, install the gauge first and log its analog output alongside the scan data — it removes the guesswork and shortens the number of revision rounds.
AEM FAQ
Which AEM wideband should I buy?
The 30-0300 X-Series UEGO controller gauge is the standard choice for a dedicated wideband. The 30-0334 adds OBD-II data on the same gauge, so you can display AFR plus vehicle parameters without a second gauge. Both use the Bosch 4.9 LSU sensor.
Do AEM X-Series gauges need a bung welded into the exhaust?
Yes, a wideband oxygen sensor needs an O2 bung in the exhaust, ideally in the downpipe or collector ahead of the catalyst. The gauge kit includes the sensor; the bung is welded in during installation.
Can an AEM gauge send data to a datalogger or ECU?
Yes. X-Series gauges provide a 0-5V analog output and AEMnet serial output, so the reading can be logged by a standalone ECU, a scan tool analog input or another AEM device.
What size are AEM X-Series gauges?
They use a 52 mm (2-1/16 in) housing with a shallow depth, so they fit standard gauge pods and A-pillar mounts.
Do I need a wideband for a remote tune?
Not for every mild bolt-on car, but strongly recommended on anything boosted, on E85, or making meaningful power. It gives the tuner measured air/fuel data at wide open throttle and it protects the engine between revisions.
Does N2 Speed install AEM gauges?
Yes. Our shop in Pompano Beach, FL can install and calibrate gauges and sensors. Call (954) 406-8550 or email sales@n2speed.com to schedule.
Questions on fitment or tuning? Call (954) 406-8550 or email sales@n2speed.com. N2 Speed, 1461 SW 30th Ave Bay 16, Pompano Beach, FL 33069.
